How to interface Echo Lumena with LabXpert Automation

LabXpert Automation connects with the Werfen Immocor Echo via TCP/IP using the ASTM communication protocols.

You must install the application on a computer connected to the machine via a network. This guide assumes you have already installed the LabXpert Automation application and added the Werfen Immocor Echo. See How to interface lab equipment with LabXpert Automation for more information.

Configuring Communication​

Login: Go to file tab to login using credentials below

Username: **Service**
Password: **113512312**

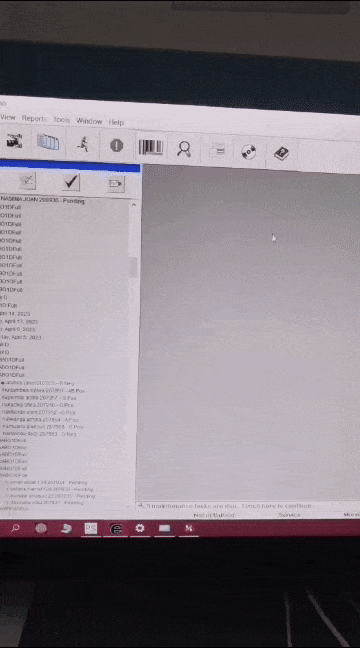

Configure communication: Go to Tools tab, select General Options

  • Under HIS/LIS, select Socket/TCP- Ensure Socket/TCP is chosen as the communication protocol
  • IP Address and Port Configuration. Input IP Address and port from the Automation app

Initialize Interface: Click Interface Status button to start the connection. Verify the connection status

Save and Close: Close the General Options window to save changes

Sending Results​

Configuring Automatic Export of results​

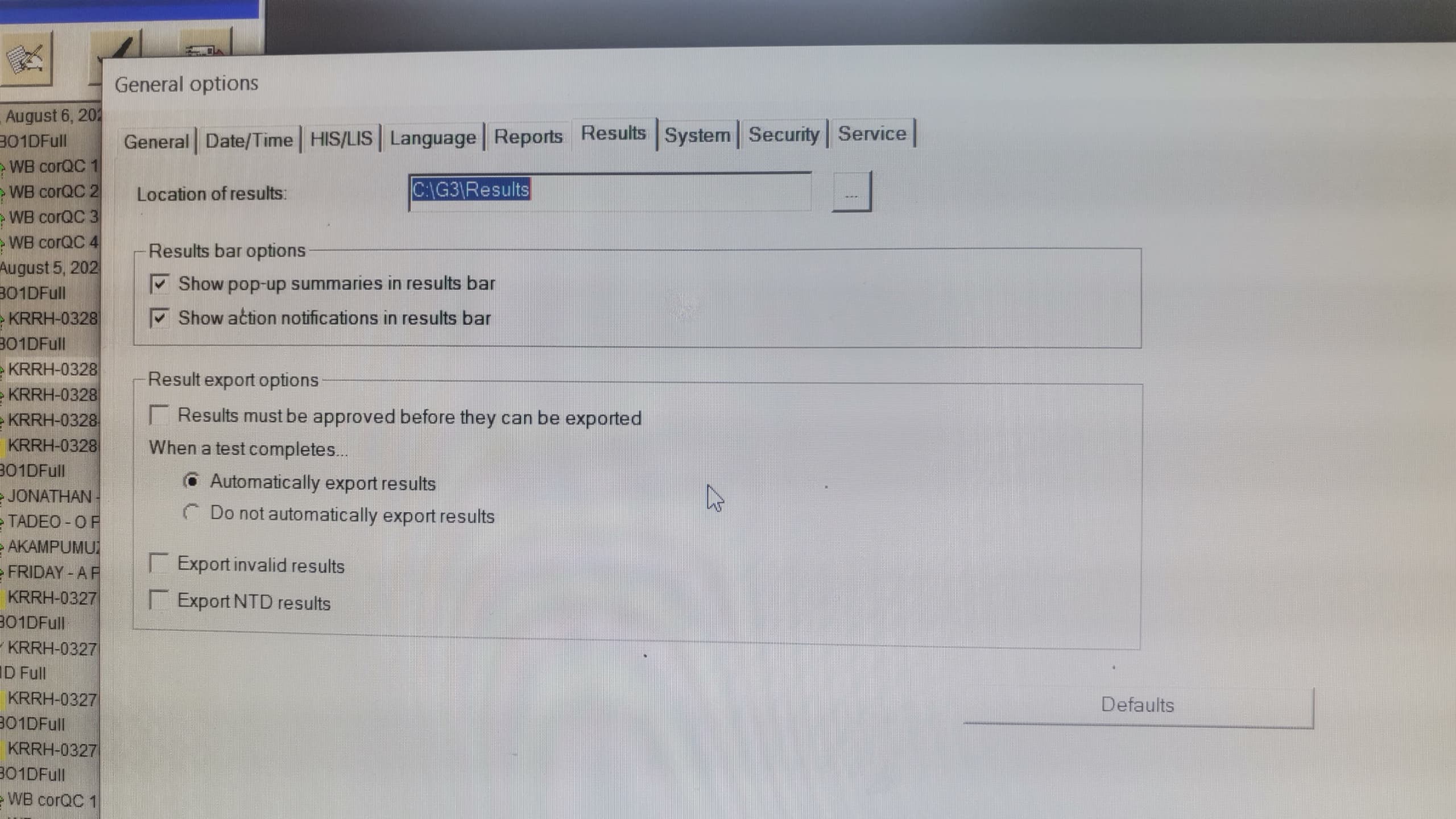

Under Results tab, disable that results must be approved before they can be exported, enable automatically export results, enable export of invalid results and enable export of NTD results

Note: All results automatically exported successfully are reflected with green tick and unsuccessful exported are reflected with red mark

Sending/Exporting Results​

To export test results, select the result or batch from the Results panel. With the LIS switched on and active, click the Export Results button on the Results bar to export results.

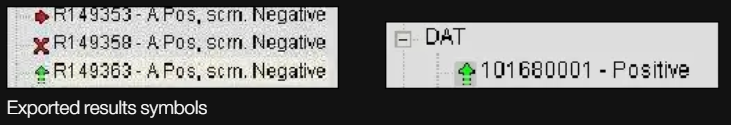

The export symbol appears next to the exported results in the Results panel. Once the results are exported, the export symbol is updated based on the export transmission status. The export transmission status of results is indicated by five icons. Examples of the icons are shown in the table of commonly used symbols described earlier in this chapter.
